Mingtu PDLC Film Smart Switchable Glass Film Adhesive Film For Windows Doors Energy
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Mingtu |
| Model Number: | SFM95 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 roll |
|---|---|
| Price: | $47.24/square meters >=2 square meters |
|
Detail Information |
|||
| Warranty: | 3 Years | After-sale Service: | Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects | Application: | Hospital |
| Design Style: | Modern | Function: | Decorative, Heat Insulation |
| Feature: | Self-Adhesive, Not Self-Adhesive | Type: | Glass Films |
| Surface Treatment: | Frosted / Etched, Opaque | Product Name: | PDLC Self Adhesive Smart Glass Film |
| Color: | White,Red,grey Customize | Keywords: | Switchable PDLC Film Smart Window Film |
| Thickness: | 0.44mm | Standard Width: | ≤14cm/14-18cm |
| Working Voltage: | AC48V~65V/50Hz | Power Consumption: | ≤5W/㎡ |
| Lifetime: | >100000h | Use: | Decoration Workshop, Bathroom, Office Building, Hospital |
| Certificate: | CE | ||
Product Description
Beijing Mingtu Technology offer high quality PDLC Switchable Smart Film
We offer a free survey and quotation service, where we will show you a working sample of the film and provide one-stop solution for your project
Welcome to Chat US for Catalog and pricelist.
Mingtu Cheap Price PDLC Film Smart Switchable Glass Film Adhesive Film For Windows Doors
Mingtu Smart Film is a high tech seamless invention that switches from transparent state to opaque one
with a flick of a switch.Smart technology provides unprecedented control over the amount of light,
privacy and heat that enters a space and is ideal for Courtyard, Supermarket, Farmhouse, Laundry, Workshop, Kitchen, School, Bathroom, Babies and kids, Bedroom, Dining, Warehouse, Home Office, Outdoor, Living Room, Park, Office Building, Apartment, Basement, Hospital, Villa, Hotel, Home Bar, Hall,Automative
| PDLC Smart Film Technical Specification | |||
| Item | Mode | Parameter | |
| Optical Performance | Parallel Optical Transmittance | Power On | >75% |
| Power Off | <1.5% | ||
| Visible Light Transmittance | Power On | ≥85% | |
| Power Off | >60% | ||
| View Angle | Power On | >150° | |
| Haze | Power On | <3% | |
| Power Off | ≥96% | ||
| Response Time | On-Off | <10ms | |
| UV Rejection | ≥99 | ||
| Infrared Rejection | Power Off | >20% | |
| Physical Properties | Max. Size(piece) | ≤1.5*3.2m | |
| Size(Roll) | 0.93/1.2/1.5m(W)*20/30/50m(L) | ||
| Self Adhesive | Yes | ||
| Heat Rejection | ≥90% | ||
| Working Environment Temperature range | -10C ~ +65C | ||
| Storage Environment Temperature range | -20C ~ +80C | ||
| Self Adhesive | Yes | ||
| Electrical Properties | Drive Voltage | Input Voltage | AC 220V, DC 12V, DC 24V |
| output Voltage | AC 48V~65V/50Hz | ||
| Power Consumption | ≤5W/sqm | ||
| Working Life | Power On | >10years | |
| Switch Frerquency | On-Off | >80000,000 | |
| Exterior Quality | Thickness | 0.65mm | |
| Air Bubble | <1.5mm/sqm. | ||
| Impurity | No | ||
How does Mingtu Smart Film work

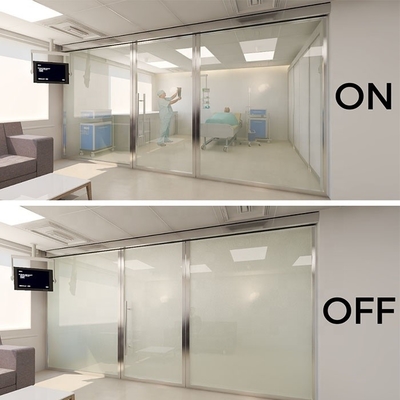

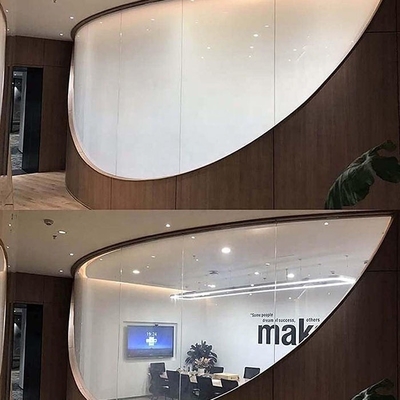

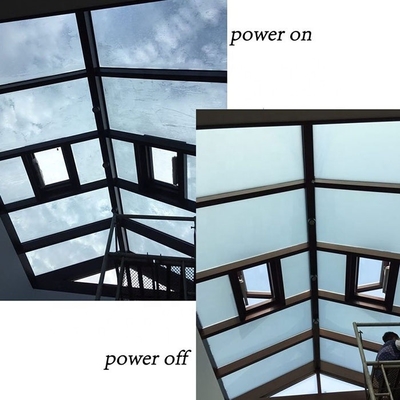

In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and
the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.
And we glad to provide the video of installation!
Welcome to our Mingtu Exhibition For Smart PDLC Film,
Please send inquiries to get our catalog and pricelist.
Follow our live stream to get free sample.
Packed in roll and EPE foam, outer package is paper carton.free package design for you.
Please Send Inquiries to get our catalog and pricelist.
Follow our live stream to get free sample.
Q1. Why choose us ?
*A leading manufacturer of Switchable PDLC Film with more than 15 years experience
*With professional smart film knowledge training and technical guidanc,installation service
*provided sufficient guarantee for stable quality,competitive price and timely delivery
*Free Sample,Free Package design
*ODM,OEM service
*Own our Independent laboratory and research team
Q2.what can you buy from us?
PDLC Film,Smart Film,Switchable Film,Switchable glass,Smart Glass,magic foil,Magic film,magic glass,intelligent glass
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance. (TT , Western union, Paypal````)
Q4. How about your delivery time?
A: Generally, it will take 1 to 2 working days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample
cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.If you have legally
registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
